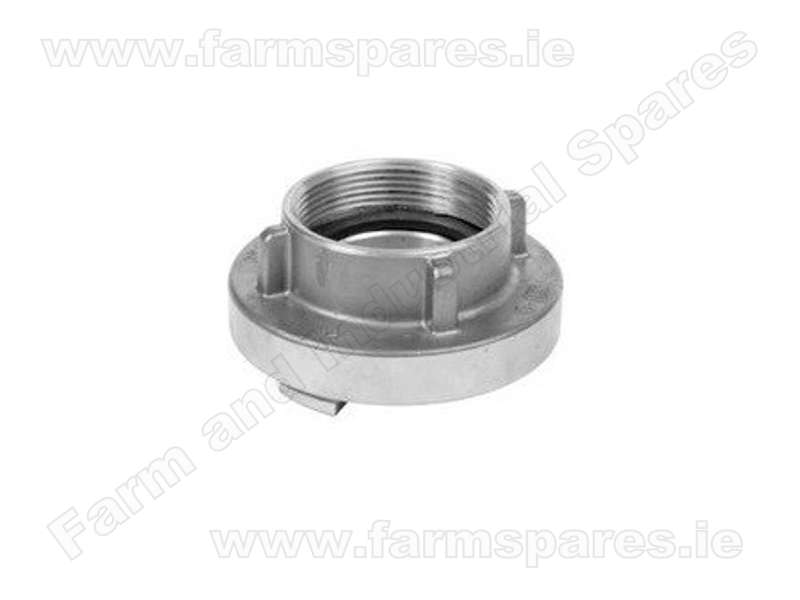

Storz Female Thread Aluminium Casted (6 Bar)

Norm 1 – DIN 14300 – 14330
Material – Casted Aluminium
Category – Coupling with female thread
Thread – BSP Female

Storz Female Couplings – Cast Aluminium

Cast aluminium storz with female thread is the ideal budget solution when a high pressure is not needed. Designed to handle working pressures of up to 6 bar, this storz female thread is ideal for agricultural application. If a hose or pipeline is installed with an outer BSP thread, this storz can be used to continue to create the storz connection.

Equipped with a sealing ring on both sides.

The internal threaded storz is equipped with an SBR sealing ring on the thread side.
The sealing ring on the connection side is made of NBR.

The sealing ring on the thread side makes it possible to mount the Storz with internal thread on an external thread.
The sealing ring ensures a leak-free connection.

Weight	N/A
Size	1" (DN25) Lug 66 mm, 1-1/4" (DN32) Lug 66 mm, 1-1/2" (DN38) Lug 66 mm, 2" (DN50) Lug 66 mm, 2-1/2" (DN63) Lug 81 mm, 2-1/2" (DN63) Lug 89 mm, 3" (DN75) Lug 89 mm, 4" (DN100) Lug 133 mm
